Page 1

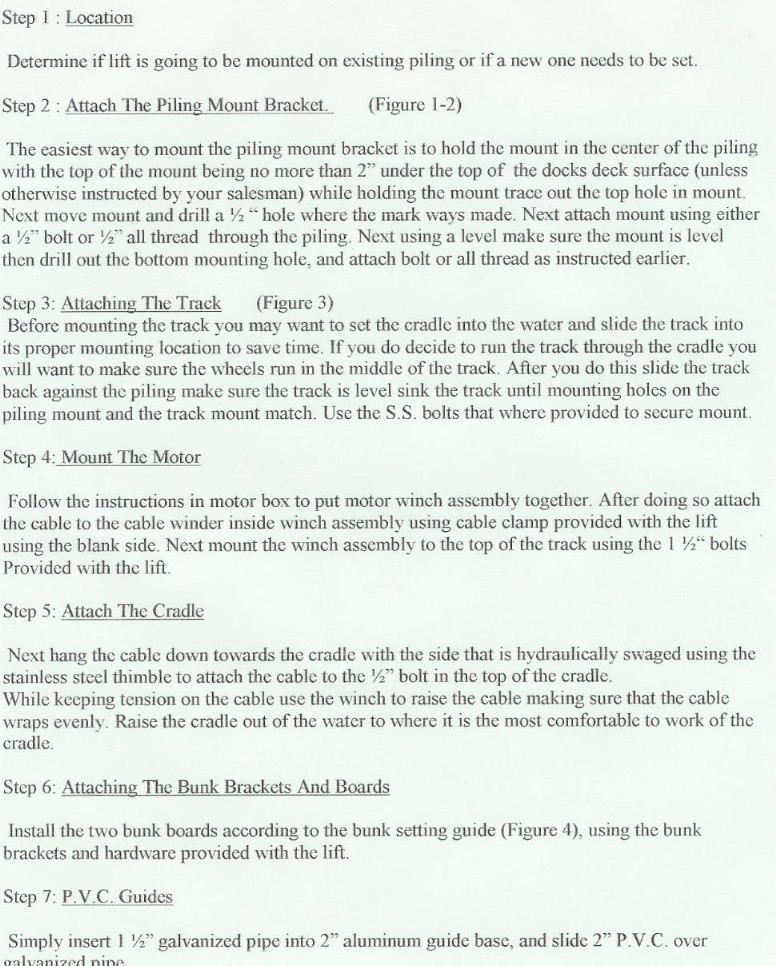

Page 2

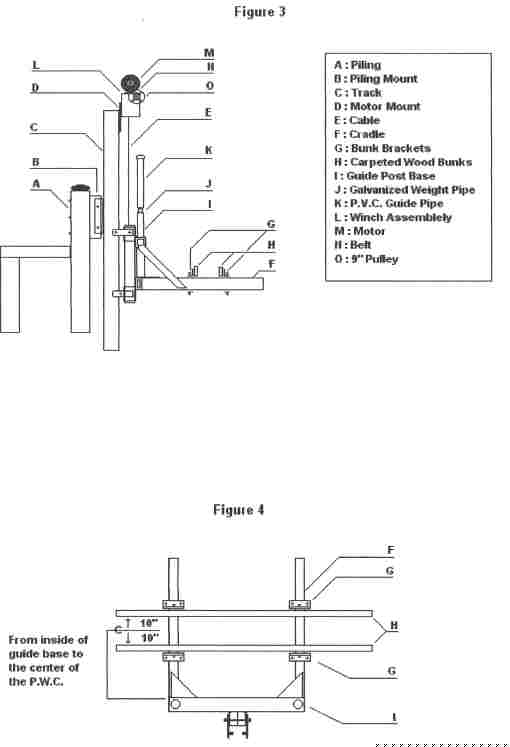

Page 3

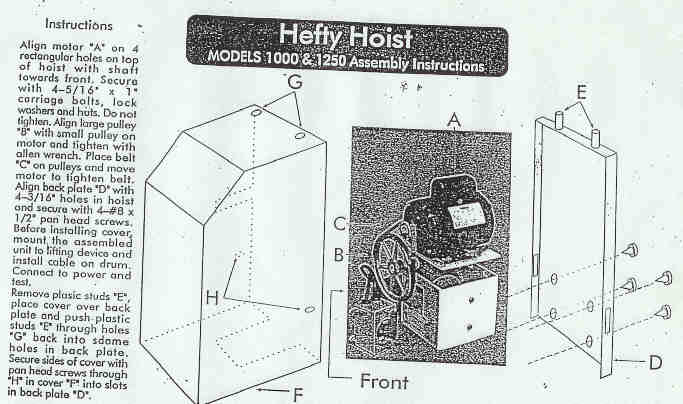

Motor Assembly
Instructions
For Seawall Or Dock Mounted Installation:
Attach mounting bracket, then secure track on piling or seawall.
Do not free hang track without support.
Installer is responsible for determining if pilings
are adequate to carry the lift and the lifts payload!
Before lifting Jet-Ski, the Ski must be centered on lift!
You must find out your pick up points and lift the Ski by your designated Pick up Points!
Caution: Boatlifts Are Not Made For Lifting Humans!!
Note: Place A Rubber Mat Between Top of Piling And Aluminum To Prevent Electrolysis.
For Tech. Support e-mail: qualitylift@lycos.com
Shave your piling as shown in picture above.

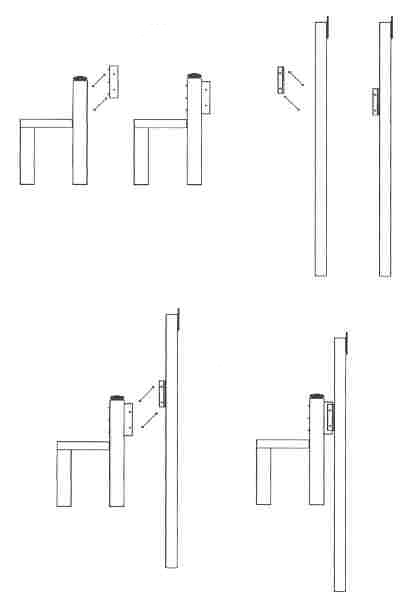

Attach your bracket as shown in picture above.
For installation there needs to be a bolt through bolting
the plate to the dock or seawall all the way through. (As Shown Above)
For concrete installation you will need to have one of the following
fastners. The size is 3/4" The Anchor Length is 2-3/4", Hole size is 1-1/4", Bolt Dia. 3/4", Pull-Out 3000 psi Concrete is 3000 Lb.
Installer is responsible for determining if piling
is adequate to carry the lift and the lifts payload!
For Technical Questions or Comments please e-mail Tech Support
The 1500# and the 2000# lift are installed the same as the PWL lift.
Except you should install the track before you set the cradle.
After setting the track the cradle can be installed by lifting the cradle just top of the track just high enough to get the
top two rows of wheels over the top of the track then slide the cradle back down the track making sure the wheels ride on the middle of the track.
The track must be a minimum of 8' in the ground.
The track must be 5'5" above the dock.
Here is a close up picture showing the 1500 & 2000 mounting bracket.
Minimum Size copper wire For Full Power
0-50 FT 0-50 FT 50-100 FT 50-100 FT 100-200 FT 100-200 FT 200-300 FT 200-300 FT 300-400 FT 300-400 FT Motor HP 115V 230V 115V 230V 115V 230V 115V 230V 115V 230V 1/2 HP 12 --- 8 --- 6 --- 4 --- 4 --- 3/4 HP 12 14 8 10 6 10 4 10 3 6 1 HP 10 12 8 10 4 10 3 8 2 6 1-1/2 HP 8 12 6 8 3 8 1 6 1/0 4
Maximum Voltage drop 4% for Full Power
PWC Electric Packing List (rtf / word format)
PWC Manual Packing List (works format)
PWC Manual Packing List (rtf / word format)
Page 1
Page 2
Page 3
Motor Assembly
Instructions
For Seawall Or Dock Mounted Installation:
Attach mounting bracket, then secure track on piling or seawall.
Do not free hang track without support.
Installer is responsible for determining if pilings
are adequate to carry the lift and the lifts payload!
Before lifting Jet-Ski, the Ski must be centered on lift!
You must find out your pick up points and lift the Ski by your designated Pick up Points!
Caution: Boatlifts Are Not Made For Lifting Humans!!
Note: Place A Rubber Mat Between Top of Piling And Aluminum To Prevent Electrolysis.
For Tech. Support e-mail: qualitylift@lycos.com
Shave your piling as shown in picture above.
Attach your bracket as shown in picture above.For installation there needs to be a bolt through bolting
the plate to the dock or seawall all the way through. (As Shown Above)
For concrete installation you will need to have one of the following
fastners. The size is 3/4" The Anchor Length is 2-3/4", Hole size is 1-1/4", Bolt Dia. 3/4", Pull-Out 3000 psi Concrete is 3000 Lb.
Installer is responsible for determining if piling
is adequate to carry the lift and the lifts payload!
For Technical Questions or Comments please e-mail Tech Support
The 1500# and the 2000# lift are installed the same as the PWL lift.
Except you should install the track before you set the cradle.
After setting the track the cradle can be installed by lifting the cradle just top of the track just high enough to get the
top two rows of wheels over the top of the track then slide the cradle back down the track making sure the wheels ride on the middle of the track.
The track must be a minimum of 8' in the ground.
The track must be 5'5" above the dock.
Here is a close up picture showing the 1500 & 2000 mounting bracket.
Minimum Size copper wire For Full Power
0-50 FT 0-50 FT 50-100 FT 50-100 FT 100-200 FT 100-200 FT 200-300 FT 200-300 FT 300-400 FT 300-400 FT Motor HP 115V 230V 115V 230V 115V 230V 115V 230V 115V 230V 1/2 HP 12 --- 8 --- 6 --- 4 --- 4 --- 3/4 HP 12 14 8 10 6 10 4 10 3 6 1 HP 10 12 8 10 4 10 3 8 2 6 1-1/2 HP 8 12 6 8 3 8 1 6 1/0 4
Maximum Voltage drop 4% for Full Power
PWC Manual Packing List (works format)
PWC Manual Packing List (rtf / word format)
Page 1
Page 2
Page 3
Motor Assembly
Instructions
For Seawall Or Dock Mounted Installation:
Attach mounting bracket, then secure track on piling or seawall.
Do not free hang track without support.
Installer is responsible for determining if pilings
are adequate to carry the lift and the lifts payload!
Before lifting Jet-Ski, the Ski must be centered on lift!
You must find out your pick up points and lift the Ski by your designated Pick up Points!
Caution: Boatlifts Are Not Made For Lifting Humans!!
Note: Place A Rubber Mat Between Top of Piling And Aluminum To Prevent Electrolysis.
For Tech. Support e-mail: qualitylift@lycos.com
Shave your piling as shown in picture above.
Attach your bracket as shown in picture above.For installation there needs to be a bolt through bolting
the plate to the dock or seawall all the way through. (As Shown Above)
For concrete installation you will need to have one of the following
fastners. The size is 3/4" The Anchor Length is 2-3/4", Hole size is 1-1/4", Bolt Dia. 3/4", Pull-Out 3000 psi Concrete is 3000 Lb.
Installer is responsible for determining if piling
is adequate to carry the lift and the lifts payload!
For Technical Questions or Comments please e-mail Tech Support
The 1500# and the 2000# lift are installed the same as the PWL lift.
Except you should install the track before you set the cradle.
After setting the track the cradle can be installed by lifting the cradle just top of the track just high enough to get the
top two rows of wheels over the top of the track then slide the cradle back down the track making sure the wheels ride on the middle of the track.
The track must be a minimum of 8' in the ground.
The track must be 5'5" above the dock.
Here is a close up picture showing the 1500 & 2000 mounting bracket.
Minimum Size copper wire For Full Power
0-50 FT 0-50 FT 50-100 FT 50-100 FT 100-200 FT 100-200 FT 200-300 FT 200-300 FT 300-400 FT 300-400 FT Motor HP 115V 230V 115V 230V 115V 230V 115V 230V 115V 230V 1/2 HP 12 --- 8 --- 6 --- 4 --- 4 --- 3/4 HP 12 14 8 10 6 10 4 10 3 6 1 HP 10 12 8 10 4 10 3 8 2 6 1-1/2 HP 8 12 6 8 3 8 1 6 1/0 4
Maximum Voltage drop 4% for Full Power
PWC Manual Packing List (rtf / word format)
Page 1
Page 2
Page 3
Motor Assembly
Instructions
For Seawall Or Dock Mounted Installation:
Attach mounting bracket, then secure track on piling or seawall.
Do not free hang track without support.
Installer is responsible for determining if pilings
are adequate to carry the lift and the lifts payload!
Before lifting Jet-Ski, the Ski must be centered on lift!
You must find out your pick up points and lift the Ski by your designated Pick up Points!
Caution: Boatlifts Are Not Made For Lifting Humans!!
Note: Place A Rubber Mat Between Top of Piling And Aluminum To Prevent Electrolysis.
For Tech. Support e-mail: qualitylift@lycos.com
Shave your piling as shown in picture above.
Attach your bracket as shown in picture above.For installation there needs to be a bolt through bolting
the plate to the dock or seawall all the way through. (As Shown Above)
For concrete installation you will need to have one of the following
fastners. The size is 3/4" The Anchor Length is 2-3/4", Hole size is 1-1/4", Bolt Dia. 3/4", Pull-Out 3000 psi Concrete is 3000 Lb.
Installer is responsible for determining if piling
is adequate to carry the lift and the lifts payload!
For Technical Questions or Comments please e-mail Tech Support
The 1500# and the 2000# lift are installed the same as the PWL lift.
Except you should install the track before you set the cradle.
After setting the track the cradle can be installed by lifting the cradle just top of the track just high enough to get the
top two rows of wheels over the top of the track then slide the cradle back down the track making sure the wheels ride on the middle of the track.
The track must be a minimum of 8' in the ground.
The track must be 5'5" above the dock.
Here is a close up picture showing the 1500 & 2000 mounting bracket.
Minimum Size copper wire For Full Power
0-50 FT 0-50 FT 50-100 FT 50-100 FT 100-200 FT 100-200 FT 200-300 FT 200-300 FT 300-400 FT 300-400 FT Motor HP 115V 230V 115V 230V 115V 230V 115V 230V 115V 230V 1/2 HP 12 --- 8 --- 6 --- 4 --- 4 --- 3/4 HP 12 14 8 10 6 10 4 10 3 6 1 HP 10 12 8 10 4 10 3 8 2 6 1-1/2 HP 8 12 6 8 3 8 1 6 1/0 4
Maximum Voltage drop 4% for Full Power
Page 1
Page 2
Page 3
Motor Assembly
Instructions
For Seawall Or Dock Mounted Installation:
Attach mounting bracket, then secure track on piling or seawall.
Do not free hang track without support.
Installer is responsible for determining if pilings
are adequate to carry the lift and the lifts payload!
Before lifting Jet-Ski, the Ski must be centered on lift!
You must find out your pick up points and lift the Ski by your designated Pick up Points!
Caution: Boatlifts Are Not Made For Lifting Humans!!
Note: Place A Rubber Mat Between Top of Piling And Aluminum To Prevent Electrolysis.
For Tech. Support e-mail: qualitylift@lycos.com
Shave your piling as shown in picture above.
Attach your bracket as shown in picture above.For installation there needs to be a bolt through bolting
the plate to the dock or seawall all the way through. (As Shown Above)
For concrete installation you will need to have one of the following
fastners. The size is 3/4" The Anchor Length is 2-3/4", Hole size is 1-1/4", Bolt Dia. 3/4", Pull-Out 3000 psi Concrete is 3000 Lb.
Page 1
Page 2
Page 3
Motor Assembly
Instructions
For Seawall Or Dock Mounted Installation:
Attach mounting bracket, then secure track on piling or seawall.
Do not free hang track without support.
Installer is responsible for determining if pilings
are adequate to carry the lift and the lifts payload!
Before lifting Jet-Ski, the Ski must be centered on lift!
You must find out your pick up points and lift the Ski by your designated Pick up Points!
Caution: Boatlifts Are Not Made For Lifting Humans!!
Note: Place A Rubber Mat Between Top of Piling And Aluminum To Prevent Electrolysis.
For Tech. Support e-mail: qualitylift@lycos.com
Shave your piling as shown in picture above.
Attach your bracket as shown in picture above.For installation there needs to be a bolt through bolting
the plate to the dock or seawall all the way through. (As Shown Above)
For concrete installation you will need to have one of the following
fastners. The size is 3/4" The Anchor Length is 2-3/4", Hole size is 1-1/4", Bolt Dia. 3/4", Pull-Out 3000 psi Concrete is 3000 Lb.
| Page 1 | | Page 2 | | Page 3 |  | Motor Assembly |
For Seawall Or Dock Mounted Installation:
Attach mounting bracket, then secure track on piling or seawall.
Do not free hang track without support.
Installer is responsible for determining if pilings
are adequate to carry the lift and the lifts payload!
Before lifting Jet-Ski, the Ski must be centered on lift!
You must find out your pick up points and lift the Ski by your designated Pick up Points!
Caution: Boatlifts Are Not Made For Lifting Humans!!
Note: Place A Rubber Mat Between Top of Piling And Aluminum To Prevent Electrolysis.
For Tech. Support e-mail: qualitylift@lycos.com
Installer is responsible for determining if pilings
are adequate to carry the lift and the lifts payload!
Before lifting Jet-Ski, the Ski must be centered on lift!
You must find out your pick up points and lift the Ski by your designated Pick up Points!
Caution: Boatlifts Are Not Made For Lifting Humans!!
Note: Place A Rubber Mat Between Top of Piling And Aluminum To Prevent Electrolysis.
Shave your piling as shown in picture above.
Attach your bracket as shown in picture above.
For installation there needs to be a bolt through bolting the plate to the dock or seawall all the way through. (As Shown Above)
For concrete installation you will need to have one of the following fastners. The size is 3/4" The Anchor Length is 2-3/4", Hole size is 1-1/4", Bolt Dia. 3/4", Pull-Out 3000 psi Concrete is 3000 Lb.
Installer is responsible for determining if piling
is adequate to carry the lift and the lifts payload!
For Technical Questions or Comments please e-mail Tech Support
The 1500# and the 2000# lift are installed the same as the PWL lift.
Except you should install the track before you set the cradle.
After setting the track the cradle can be installed by lifting the cradle just top of the track just high enough to get the
top two rows of wheels over the top of the track then slide the cradle back down the track making sure the wheels ride on the middle of the track.
The track must be a minimum of 8' in the ground.
The track must be 5'5" above the dock.
Here is a close up picture showing the 1500 & 2000 mounting bracket.
Minimum Size copper wire For Full Power
0-50 FT 0-50 FT 50-100 FT 50-100 FT 100-200 FT 100-200 FT 200-300 FT 200-300 FT 300-400 FT 300-400 FT Motor HP 115V 230V 115V 230V 115V 230V 115V 230V 115V 230V 1/2 HP 12 --- 8 --- 6 --- 4 --- 4 --- 3/4 HP 12 14 8 10 6 10 4 10 3 6 1 HP 10 12 8 10 4 10 3 8 2 6 1-1/2 HP 8 12 6 8 3 8 1 6 1/0 4
Maximum Voltage drop 4% for Full Power
Minimum Size copper wire For Full Power
| 0-50 FT | 0-50 FT | 50-100 FT | 50-100 FT | 100-200 FT | 100-200 FT | 200-300 FT | 200-300 FT | 300-400 FT | 300-400 FT | |
| Motor HP | 115V | 230V | 115V | 230V | 115V | 230V | 115V | 230V | 115V | 230V |
| 1/2 HP | 12 | --- | 8 | --- | 6 | --- | 4 | --- | 4 | --- |
| 3/4 HP | 12 | 14 | 8 | 10 | 6 | 10 | 4 | 10 | 3 | 6 |
| 1 HP | 10 | 12 | 8 | 10 | 4 | 10 | 3 | 8 | 2 | 6 |
| 1-1/2 HP | 8 | 12 | 6 | 8 | 3 | 8 | 1 | 6 | 1/0 | 4 |
