Beamless Installation Instructions

Please click on link to enlarge and Print

Installer is responsible for determining if pilings
are adequate to carry the lift and the lifts payload!

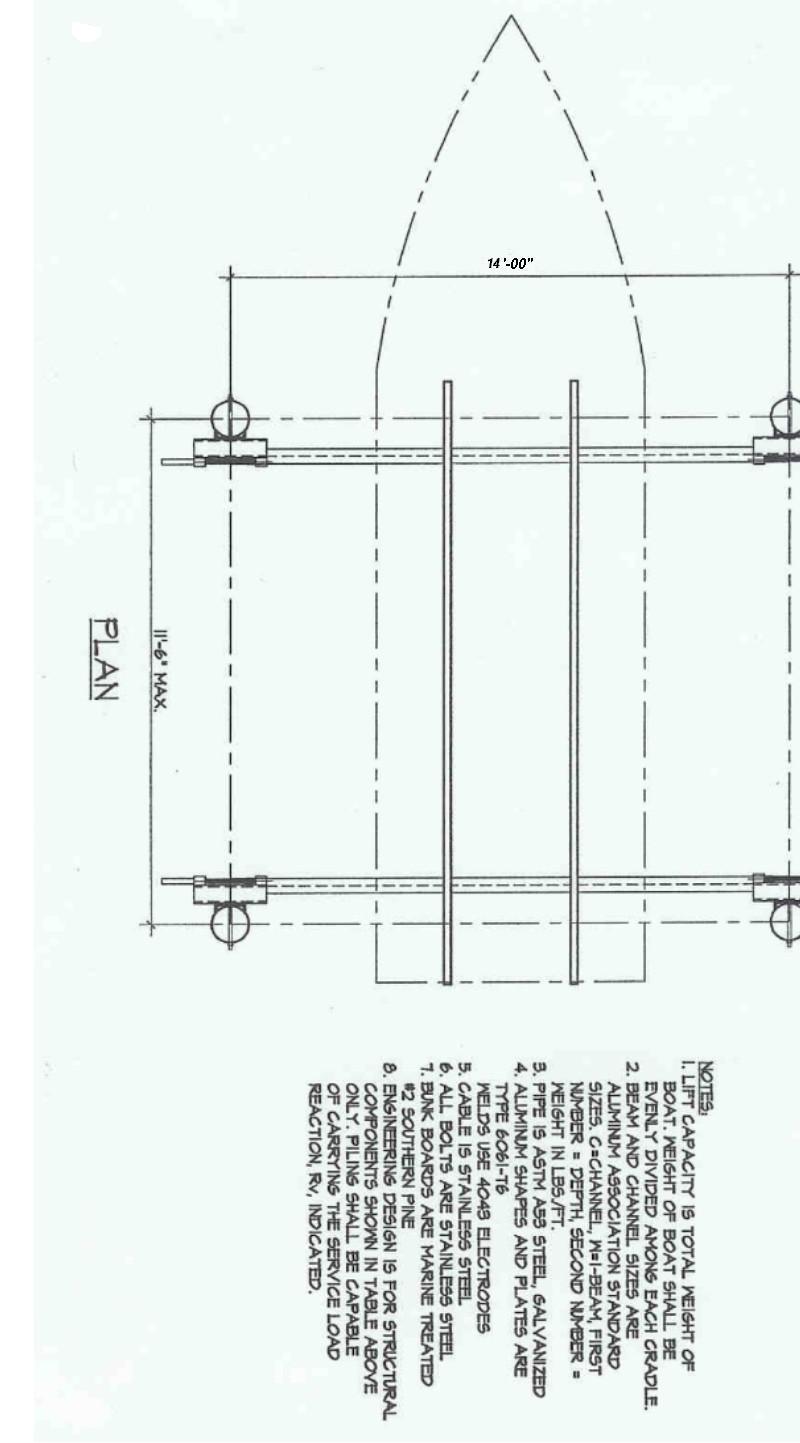

Beamless Pile Diagram 3-12K

Beamless Pile Diagram 16-20K

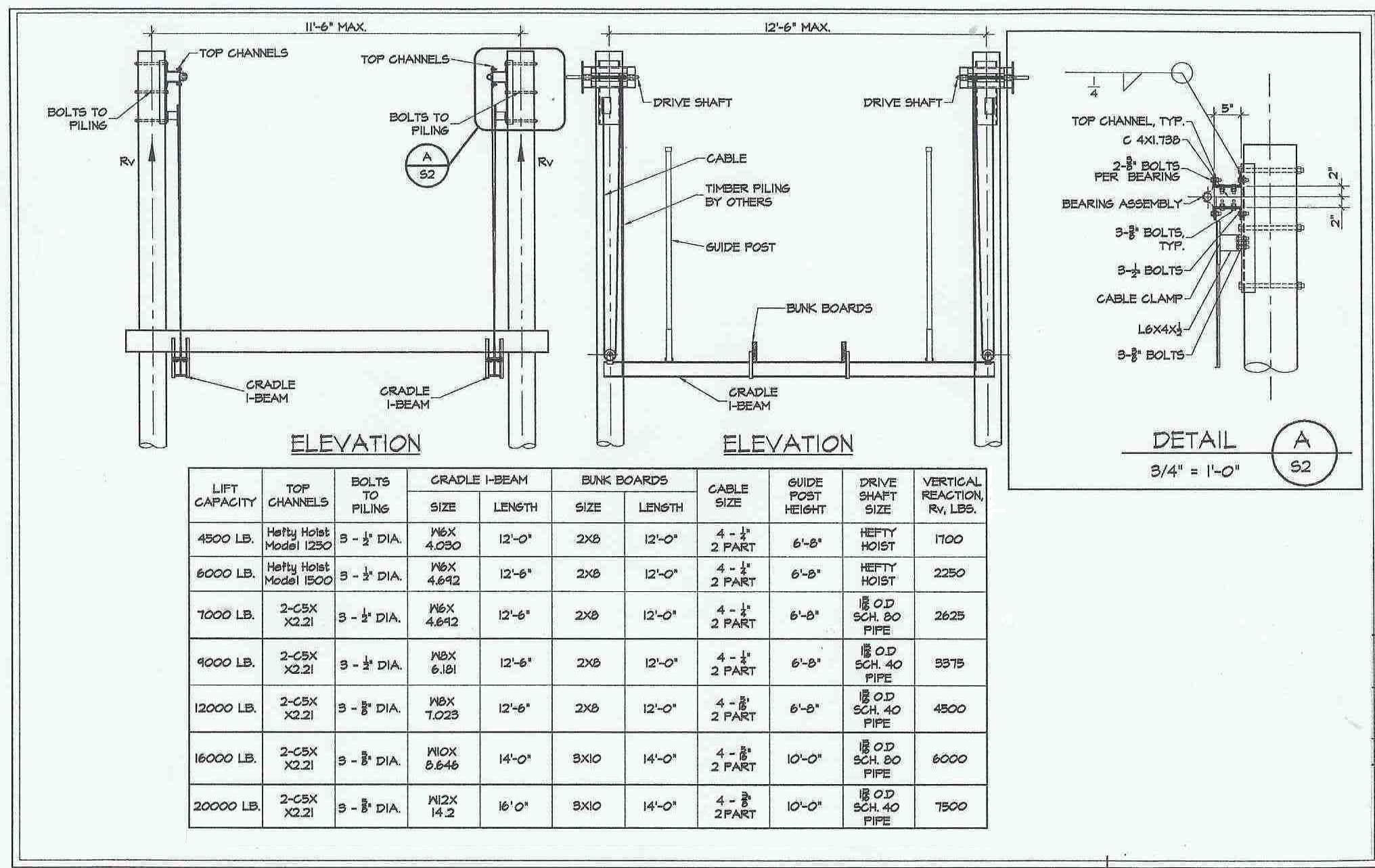

Beamless Specs 4.5K-20K

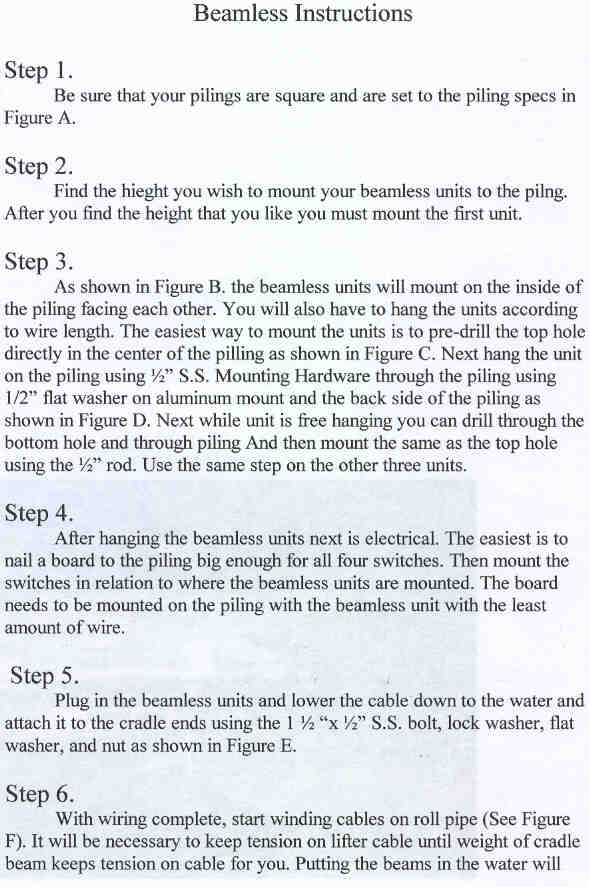

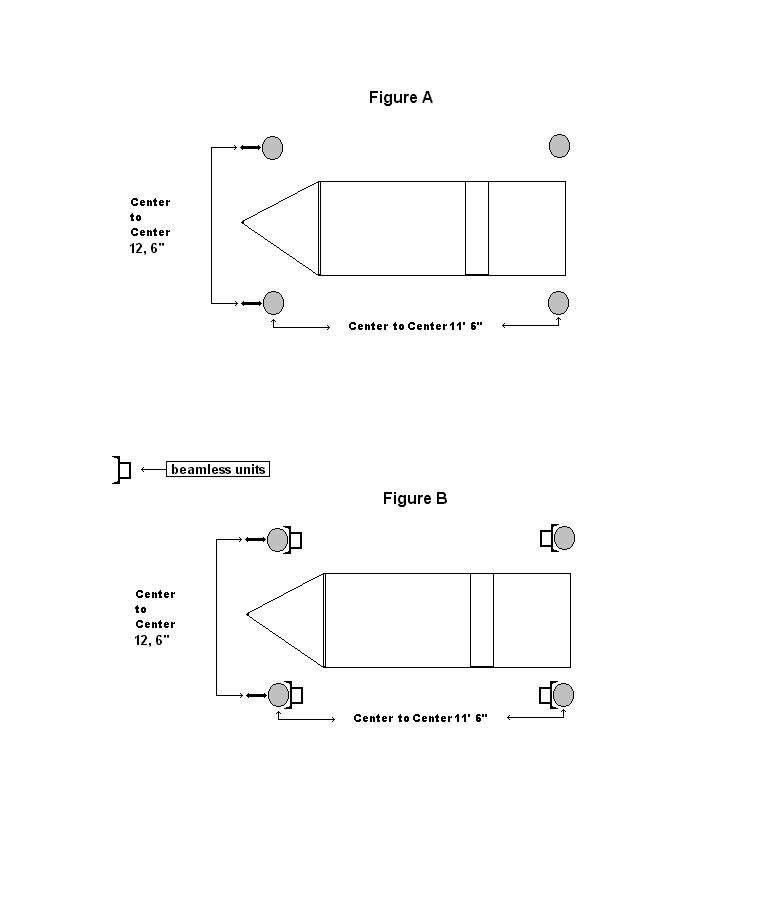

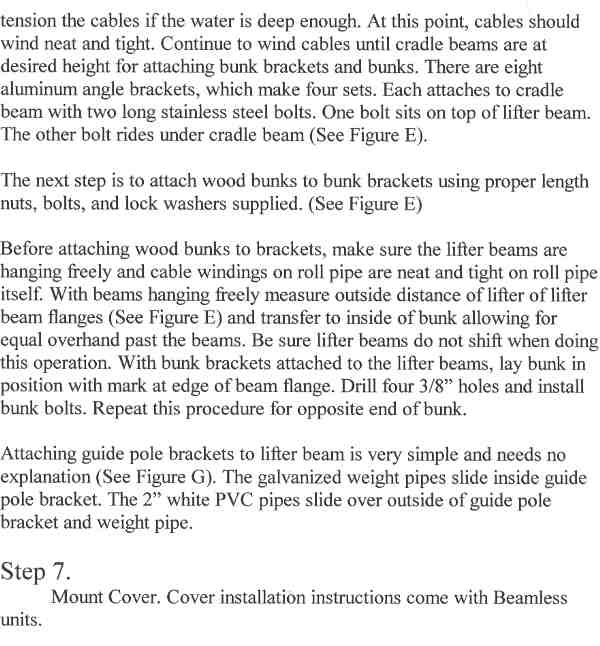

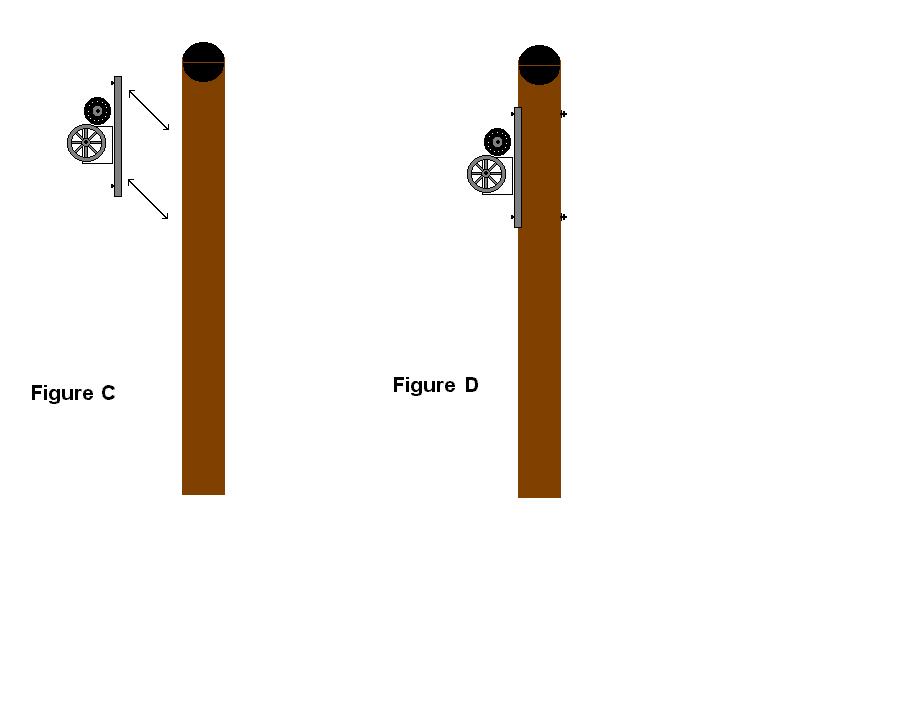

	Steps 1-6		Steps 6 & 7		Figs. A & B		Figs. C & D

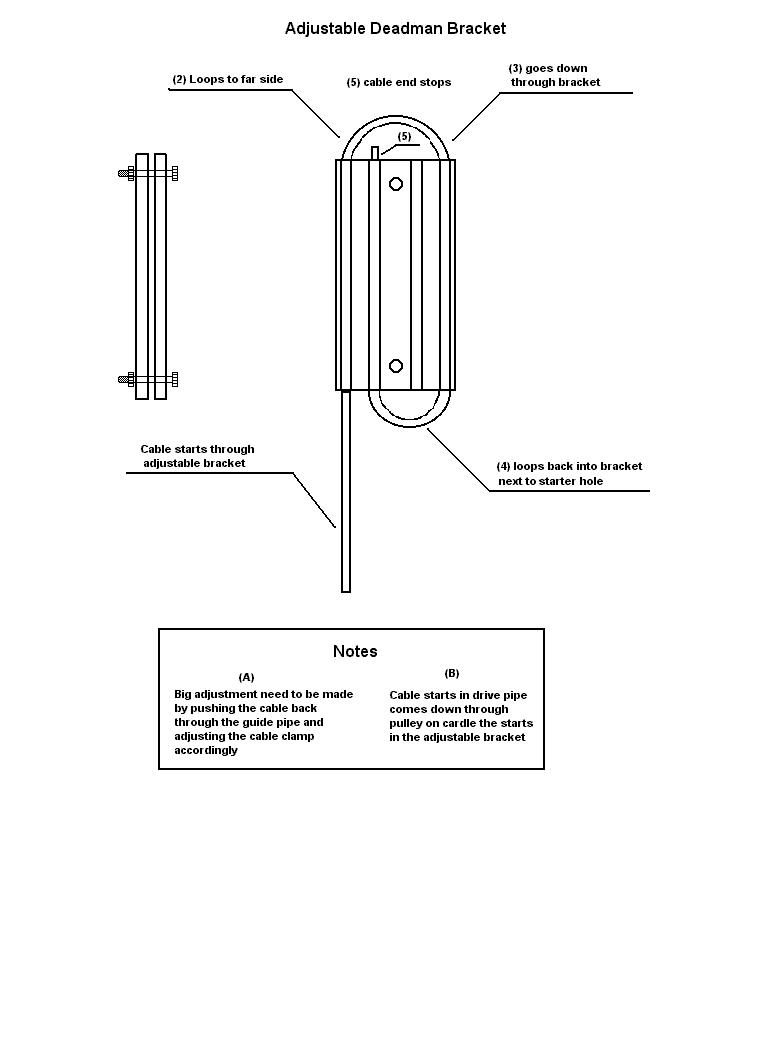

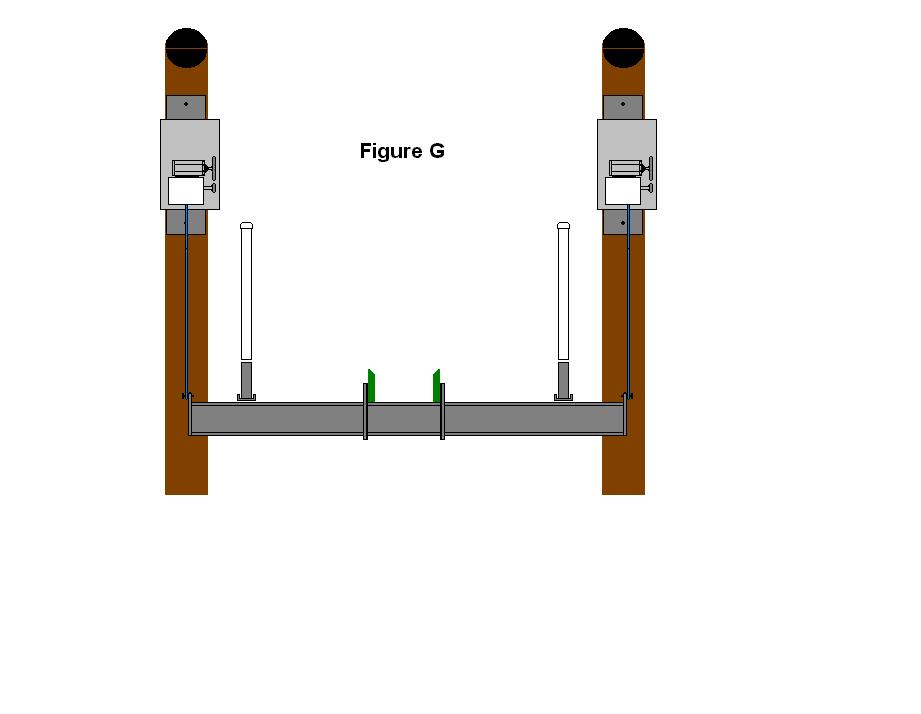

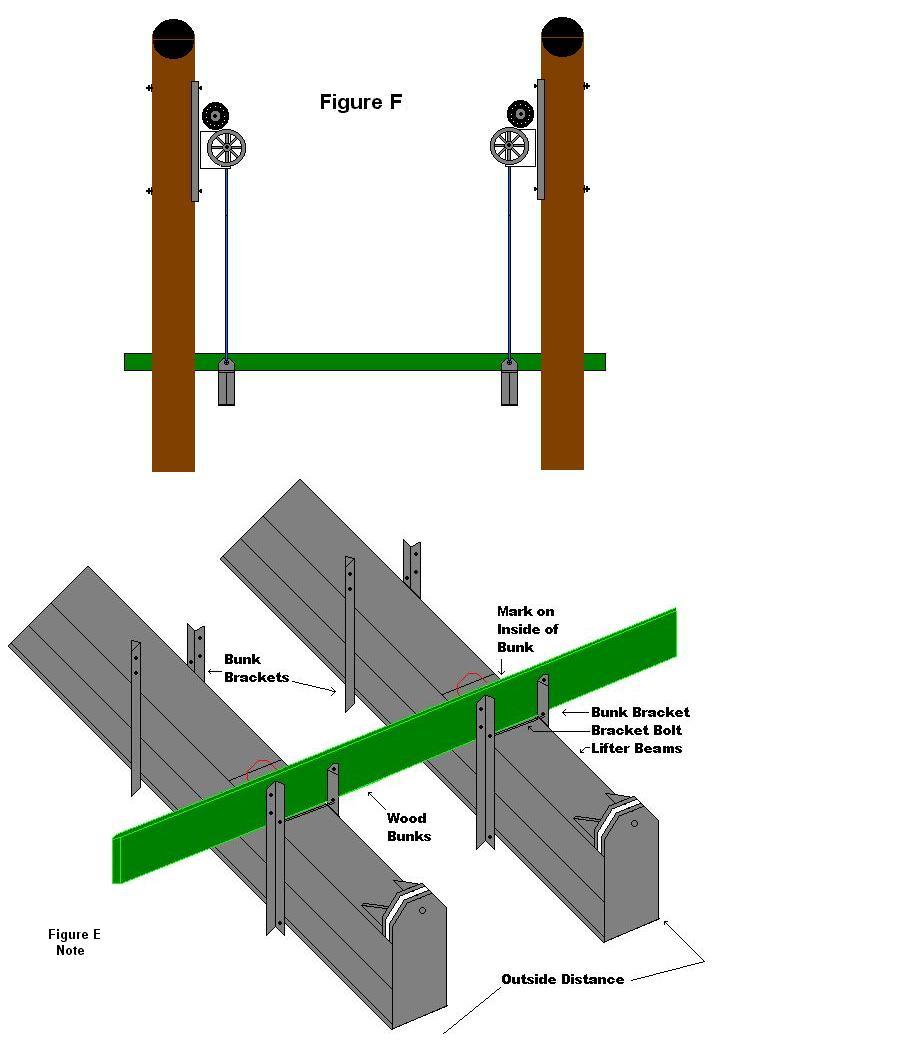

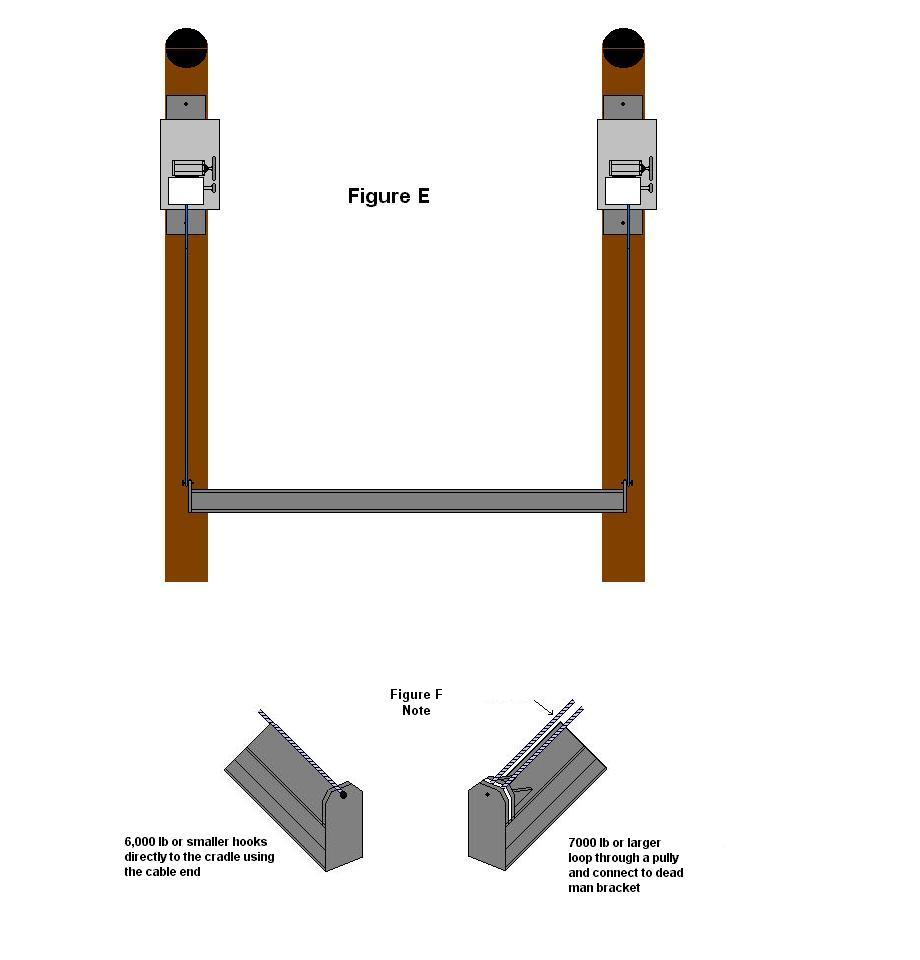

	Fig. E		Fig. F		Fig. G		2003 Deadman Bracket
	Wire Diagram

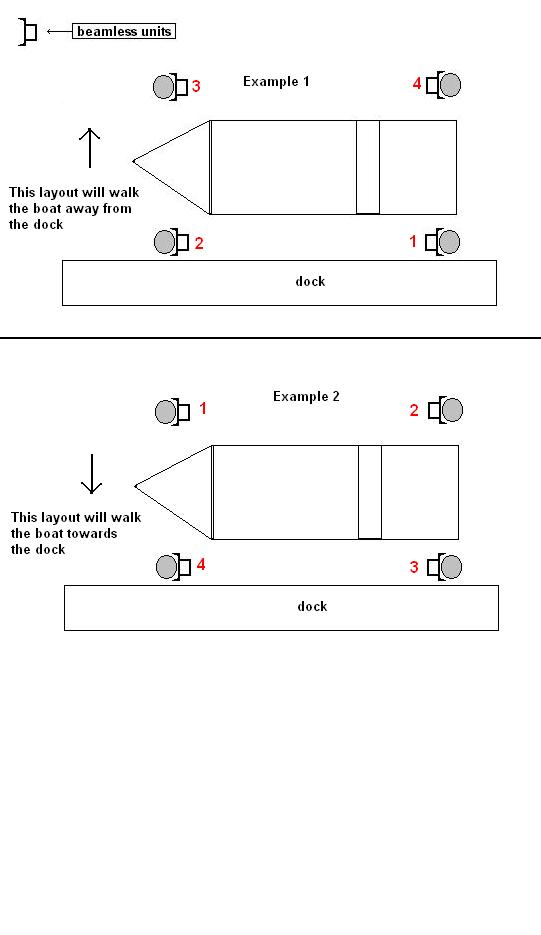

Beamless Layout

Color photo of Deadman Bracket

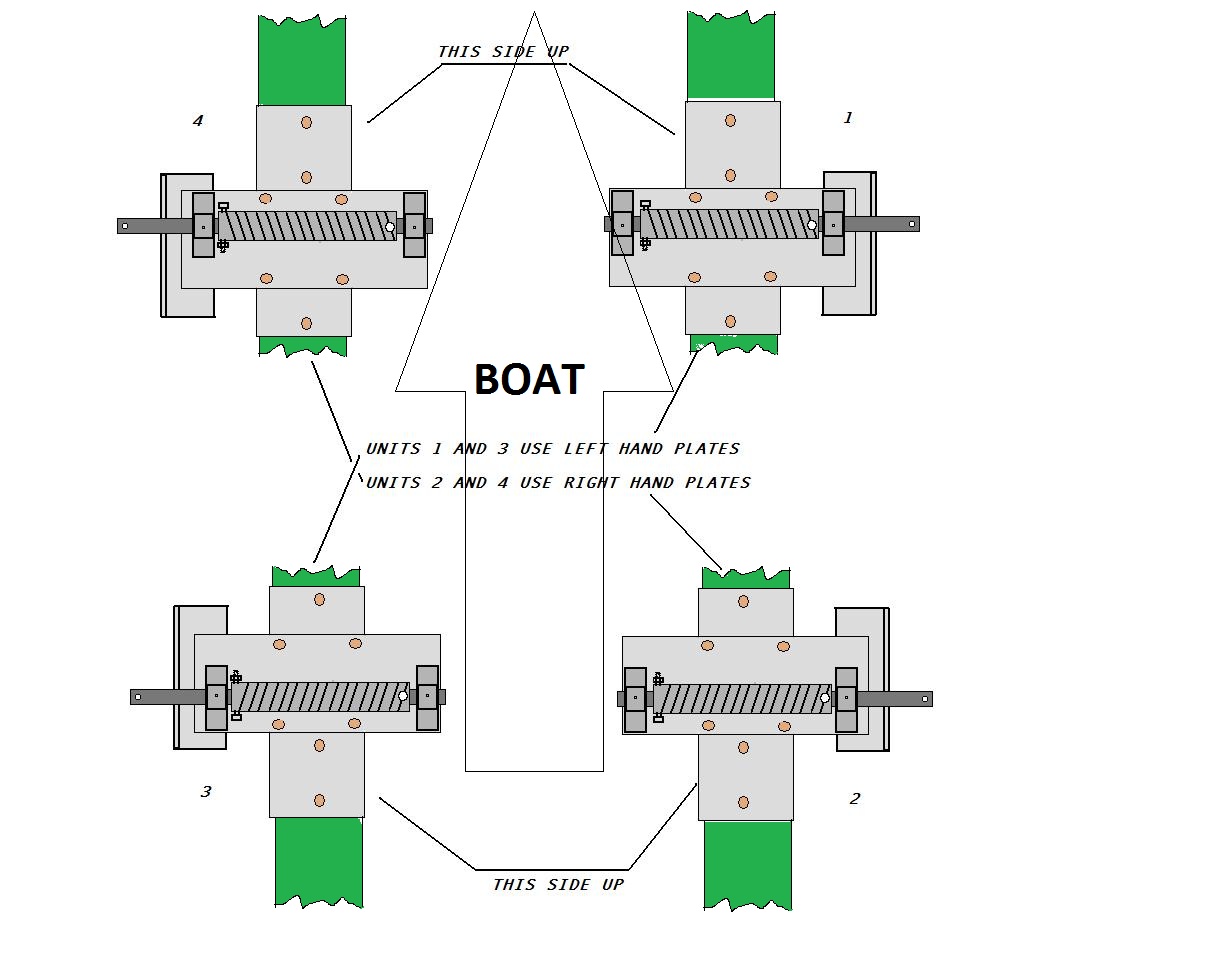

Pasta 1

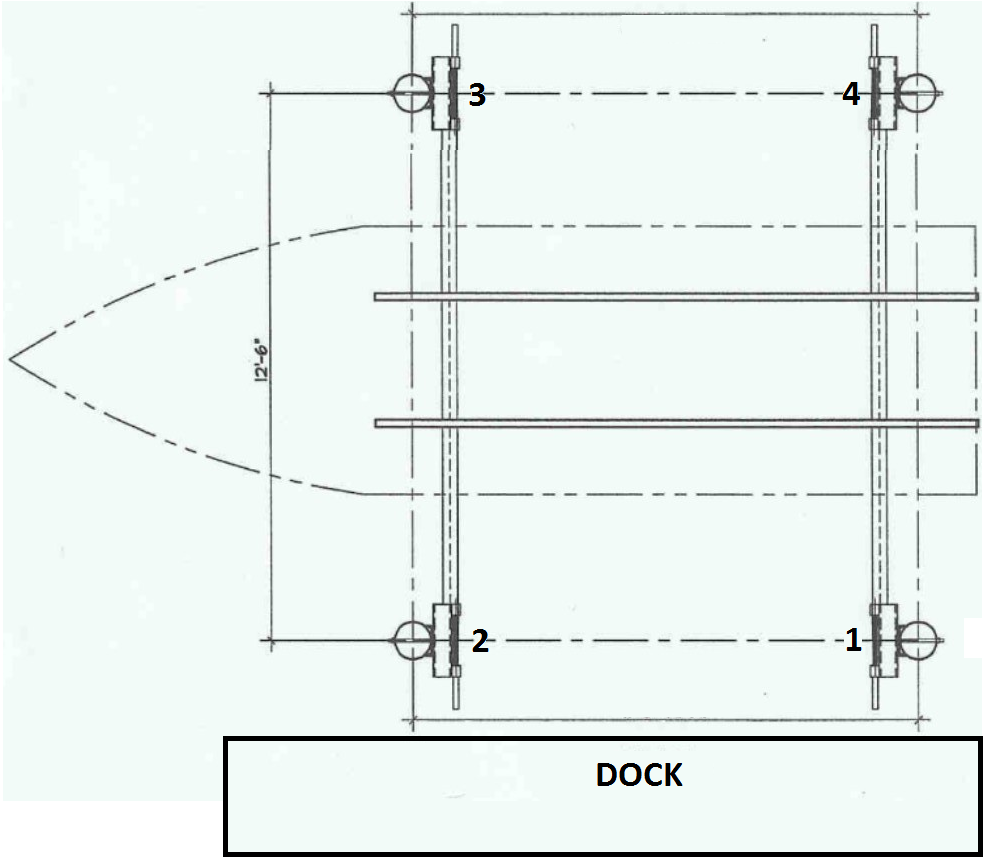

Pasta 2

Minimum Size copper wire For Full Power

	0-50 FT	0-50 FT	50-100 FT	50-100 FT	100-200 FT	100-200 FT	200-300 FT	200-300 FT	300-400 FT	300-400 FT
Motor HP	115V	230V	115V	230V	115V	230V	115V	230V	115V	230V
1/2 HP	12	---	8	---	6	---	4	---	4	---
3/4 HP	12	14	8	10	6	10	4	10	3	6
1 HP	10	12	8	10	4	10	3	8	2	6
1-1/2 HP	8	12	6	8	3	8	1	6	1/0	4

Maximum Voltage drop 4% for Full Power

For Tech Support e-mail Tech Support
Please keep in mind to handle your questions we prefer them to be in e-mail so that all of our staff has access and can help you.

To quicken the process if you can take pictures of the part or area you have questions on and send them to us. Having the pictures helps us clarify any questions due to the high volume of lifts we maufacture for different companies.
