Dominator Installation Instructions

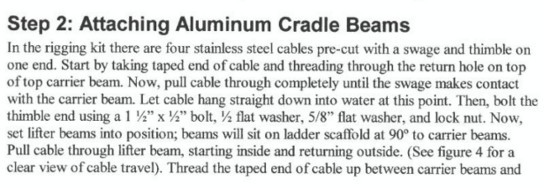

Click here for Step 2

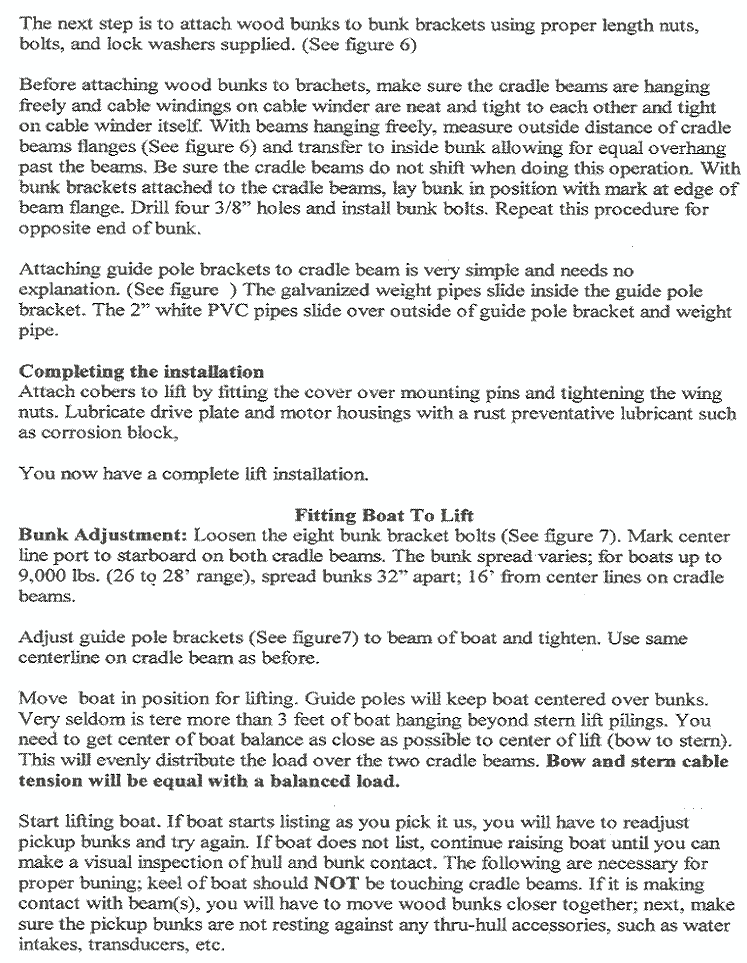

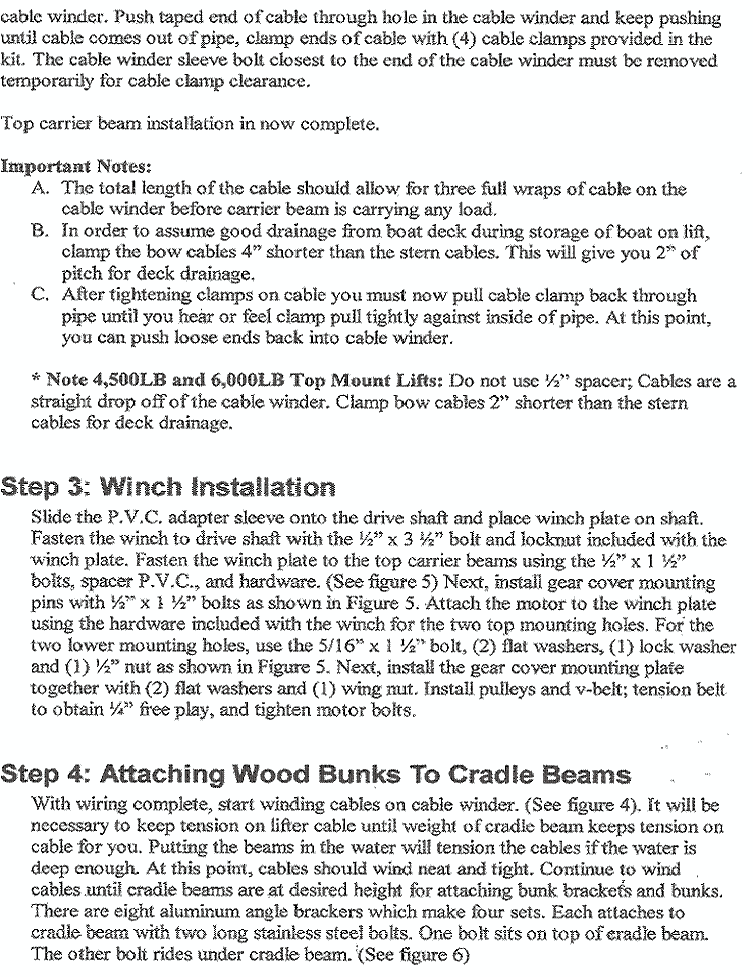

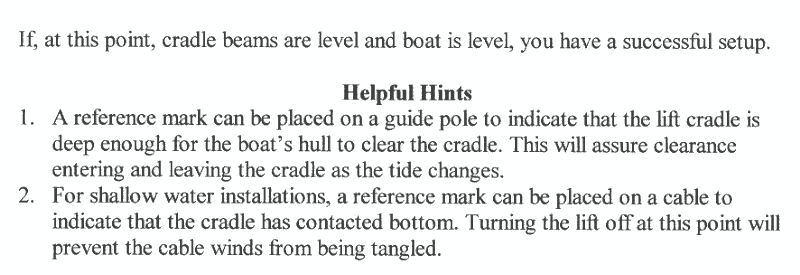

	Step 3 & 4		Step 4 Cont.		Helpful Hints

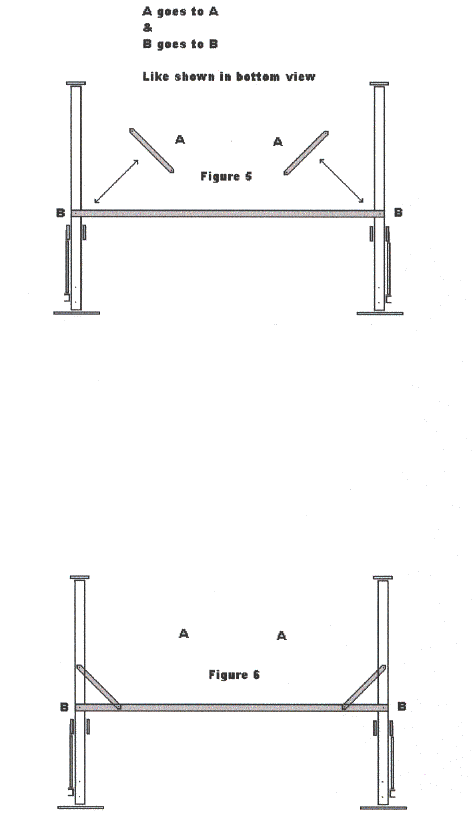

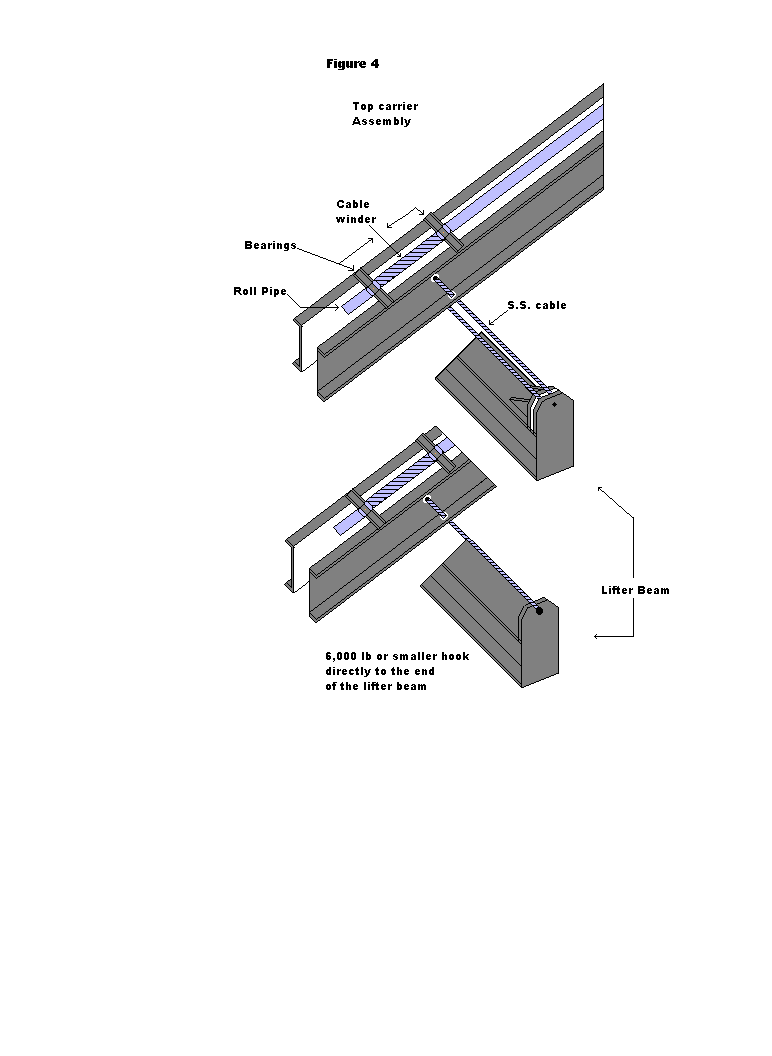

	Fig. 4		Fig. 5

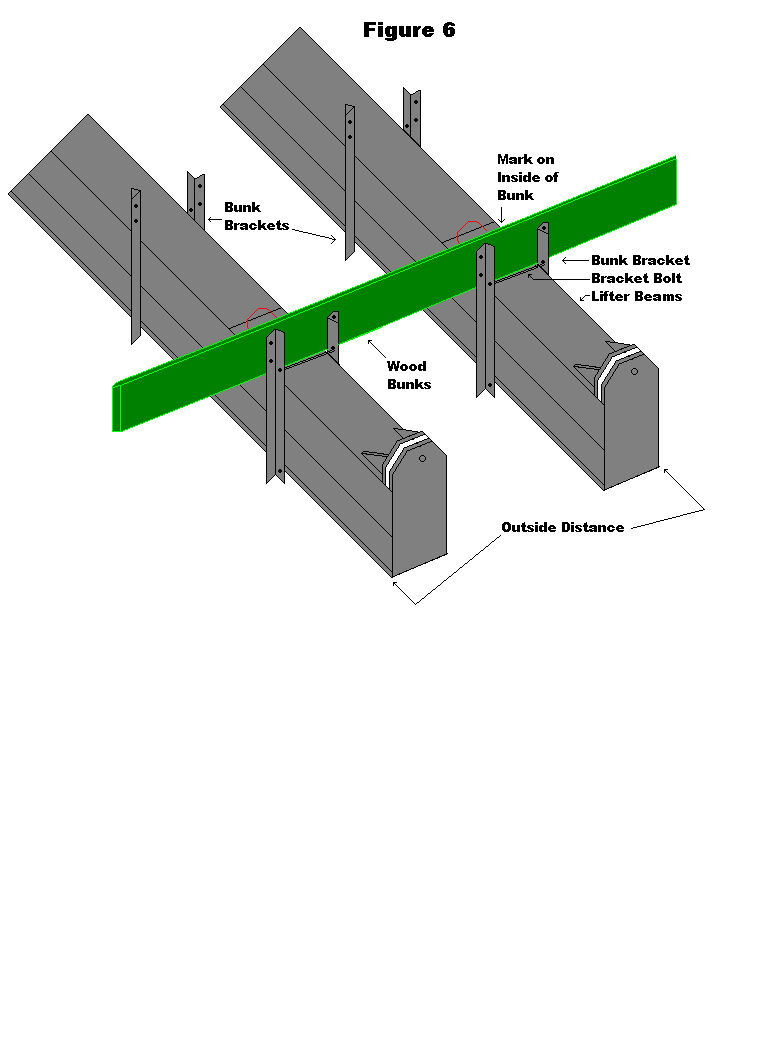

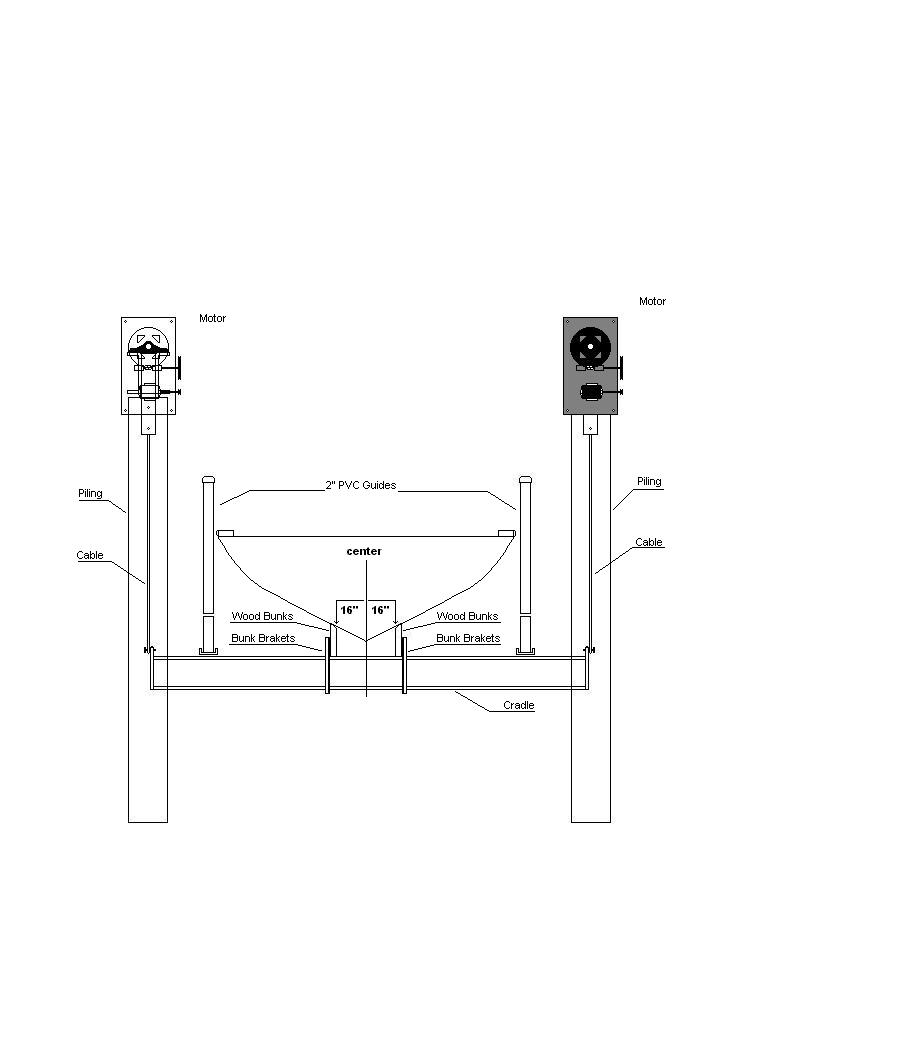

	Fig. 6		Fig. 7		Wire Diagram
	2003 Guide Post		2003 Deadman Bracket

Minimum Size copper wire For Full Power

	0-50 FT	0-50 FT	50-100 FT	50-100 FT	100-200 FT	100-200 FT	200-300 FT	200-300 FT	300-400 FT	300-400 FT
Motor HP	115V	230V	115V	230V	115V	230V	115V	230V	115V	230V
1/2 HP	12	---	8	---	6	---	4	---	4	---
3/4 HP	12	14	8	10	6	10	4	10	3	6
1 HP	10	12	8	10	4	10	3	8	2	6
1-1/2 HP	8	12	6	8	3	8	1	6	1/0	4

Maximum Voltage drop 4% for Full Power

For Tech Support e-mail Tech Support
Please keep in mind to handle your questions we prefer them to be in e-mail so that all of our staff has access and can help you.

To quicken the process if you can take pictures of the part or area you have questions on and send them to us. Having the pictures helps us clarify any questions due to the high volume of lifts we maufacture for different companies.
